PV plant located in North East Anatolia. Huawei Smartlogger 2000 used with Seven Solar Sensor Box, radiation sensor, ambient temperature and wind speed sensors
Bayburt University Solar PV Plant
PROJECT DETAILS
| Project : | Bayburt University Solar PV Plant, 1MW | Location : | Bayburt / Turkey |
| Client : | Gelisim Muhendislik | Installation Date : | 24.01.2018 |
COMPONENT LIST
| No | Description |
| 1. | 3S-SR-2T-WS-MB Digital Silicon Irradiance Sensor with RS485 port, 0..1500 W/qm, with measurement of cell temperature, with one analog input for Pt1000 and one digital input for wind speed measurement (reed relay up to 100 Hz), incl. 3 m cable Protocol: MODBUS RTU |
| 2. | 3S-AT-PT1000-CON Ambient temperature sensor, Pt1000, 3 m cable, with 3 pole connector to connection at 3S-SR-2T-WS-MB |
| 3. | 3S-WS-PLS-CON Windspeed 0..40 m/s with digital output, incl. 5-m- cable with connector to connection at 3S-SR-2T-WS-MB |
Datalogger: Huawei Smartlogger 2000
Monitoring Software: Huawei Enspire, NetEco
Communication: Modbus RTU over RS485 cable inside trench and conduit
Summary: Supply, installation and commissioning of meteorological sensors of 1MW Bayburt University Solar PV Plant.
SITE & APPLICATION DETAILS

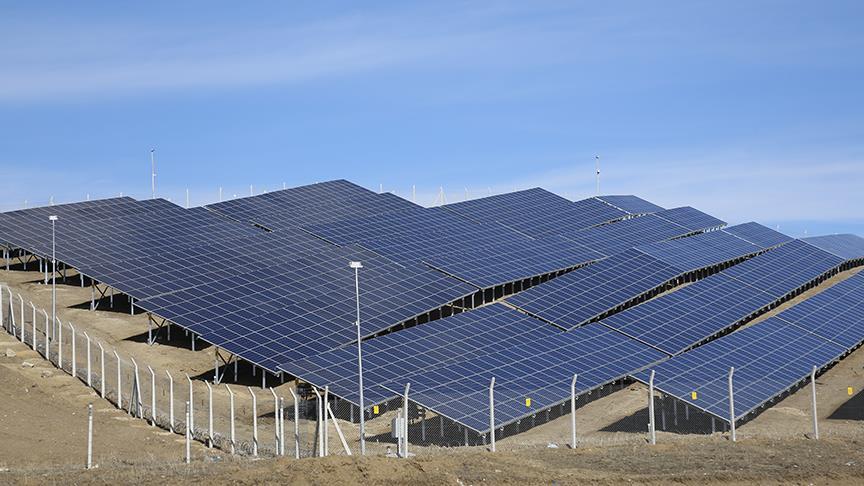

Bayburt University Solar PV Plant, 1MW
