Sunways Weather Station
SEVEN provides a full set of Weather Station for Solar PV Plants, compatible with Sunways Datalogger ST-Logger
DESCRIPTION

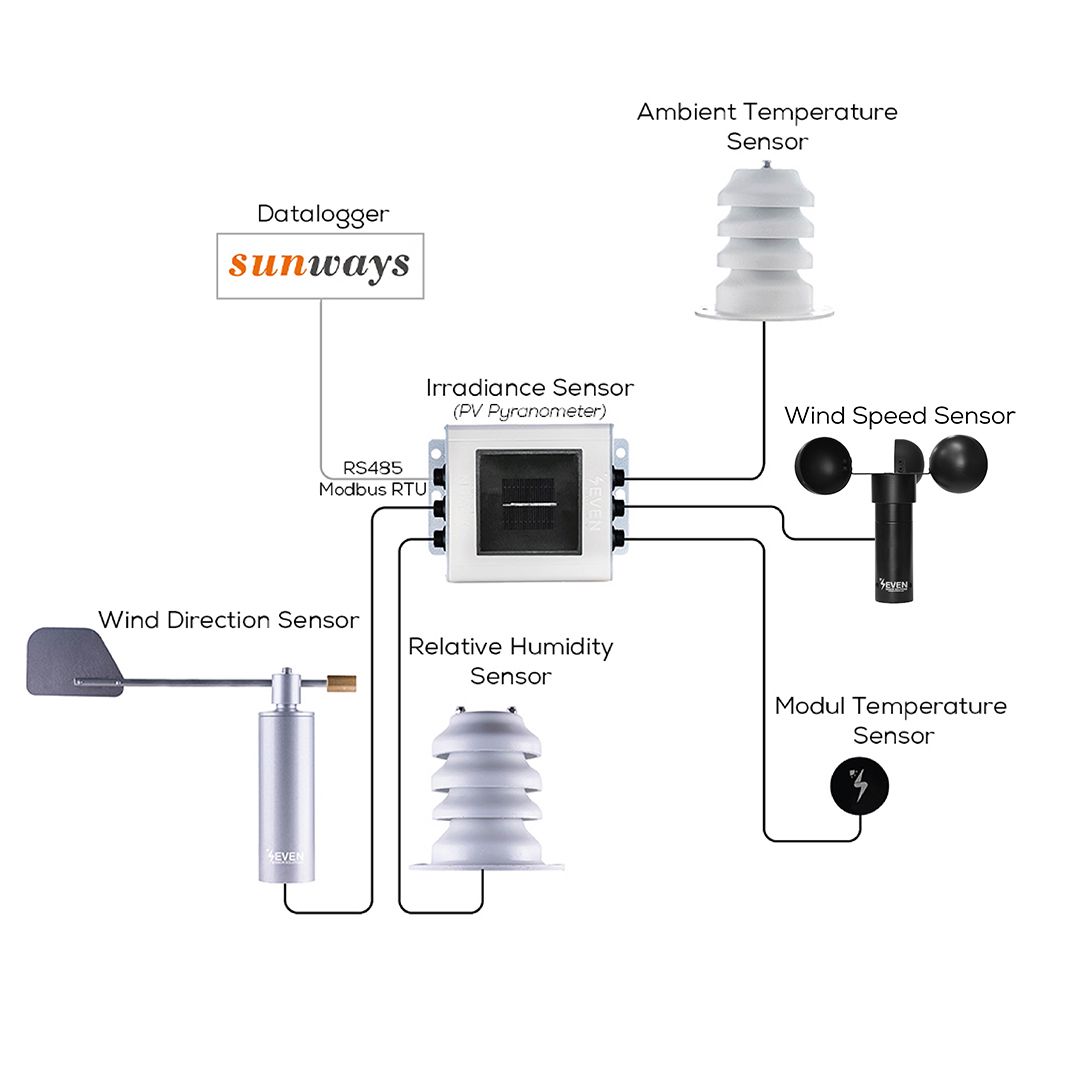

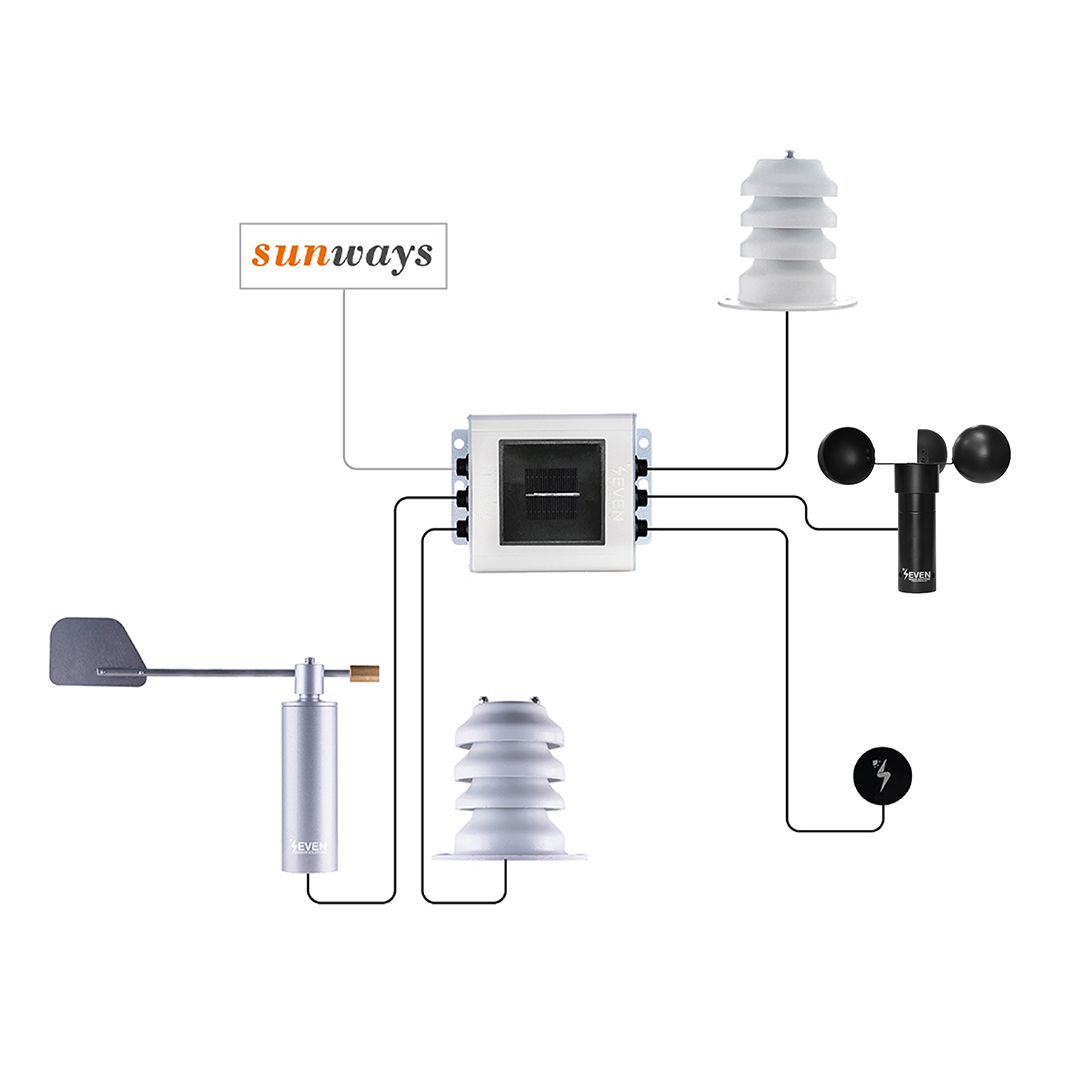

Sunways Datalogger ST 1000 allows the monitoring of up to 90 devices, and support SEVEN meteo station connected to RS485 port, and used to control the Performance of the PV Plant.
The required sensors in your weather station
Product Photo | Sensor Type | Item Code | Product Details |
---|---|---|---|
![]() |
Irradiance Sensor | 3S-IS | Irradiance Sensor With Modbus RTU Output |
![]() |
Ambient Temperature Sensor PT1000 | 3S-AT-PT1000 | Ambient Temperature Sensor-PT1000 |
![]() |
Module Temperature Sensor PT1000 | 3S-MT-PT1000 | Module Temperature Sensor-PT1000 |
![]() |
Wind Speed Sensor | 3S-WS-PLS-P | Wind Speed Sensor With Pulse Output |
![]() |
Humidity Sensor | 3S-RH&AT | Relative Humidity Sensor With Digital Output |
![]() |
Wind Direction Sensor | 3S-WD | Wind Direction Sensor With Potentiometer Output |
