Ambient Temperature Sensor-PT1000 – 3S-AT-PT1000

The ambient temperature sensor is a measuring device used to monitor the ambient temperature. Using a PT1000 probe, it measures the air temperature in the environment where the PVs are installed, in degrees Celsius (°C). The product is protected with a UV-resistant shading accessory, ensuring it is not affected by radiation. In addition, the 3S-AT-PT1000 product is compatible with the SEVEN Irradiance Sensor Box. The Ambient Temperature Sensor is a product designed for use in environmental and industrial applications. It has been specially developed to meet the requirements of PV plant monitoring systems in compliance with IEC 60751:2022 and IEC 61724-1:2021 standards.

All parameters (such as irradiance, module temperature, wind speed…) have effects that either increase or decrease performance. Some of these effects directly influence performance, while others have indirect impacts. For instance, some of the important factors for heat convection are wind speed and air density. Since air density also changes with ambient temperature, it directly influences the cooling of the panels. Ambient temperature directly affects performance because it determines whether the panels cool down or heat up, depending on the absolute difference with the panel temperature. For example, if the ambient temperature increases, the cell temperature also rises, which leads to a decrease in the generated energy.

You can find the technical information of the 3S-AT-PT1000 Ambient Temperature sensor in the table below.

Technical Specifications of Ambient Temperature Sensor

 How to install the ambient temperature?

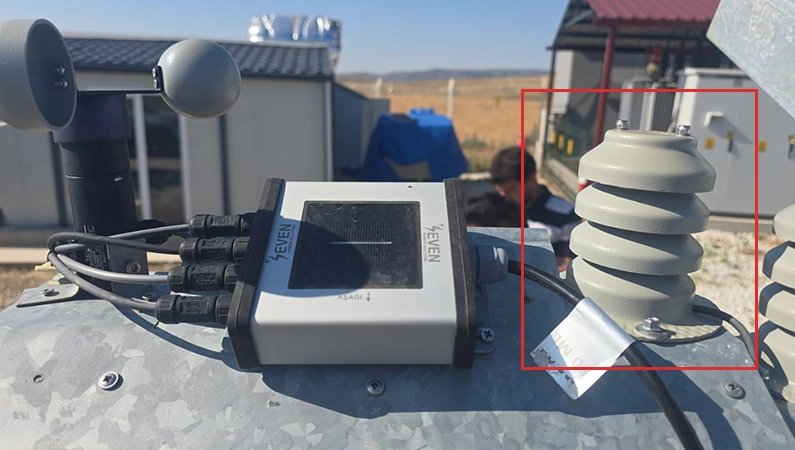

To put the Ambient Temperature Sensor on a flat surface, use the pre-mounted shield that comes with the sensor. Screws are readily inserted into the mounting holes on the sensor to fasten it to the flat ground.

It can be connected to SEVEN Irradiance Sensor, Sensor Box models, or a Compact Weather Station via a 6-pin connector with IP67 protection. Additionally, it can be directly linked to dataloggers and other receiving devices. The measuring values are transmitted as ohmic resistance signals.

Why do you choose Seven Ambient Temperature Sensor?

• The product comes with a shield device.
• Its holes allow for quick and easy installation.
• They are specially designed according to IEC 60751:2022 and IEC 61724-1:2021 Annex B. This ensures high accuracy.

FREQUENTLY ASKED QUESTIONS (FAQ)

1- What is the Class?

All 3S-AT-PT1000 sensors are Class A according to IEC 60751:2022.

2- What is the warranty?

All 3S-AT-PT1000 sensors come with a 2-year warranty.

3- What is the price of ambient temperature sensor?

Between 100 and 150 EUR.

4- What are the delivery times?

• Small Orders: approx. 1-2 weeks
• Bulk orders (100 pcs): approx. 4-5 weeks

5- How do I set up the sensor?

Follow our user manual which include step-by-step instructions. The user manual link is

https://www.sevensensor.com/files/d/en/Ambient_Temperature_Sensor_User_Manual.pdf

6- Does the sensor include a cable?

Each unit comes with a 1,5 m LI2YC11Y-TP PUR Cable (UV and weather resistant). Other lengths are available on request.
