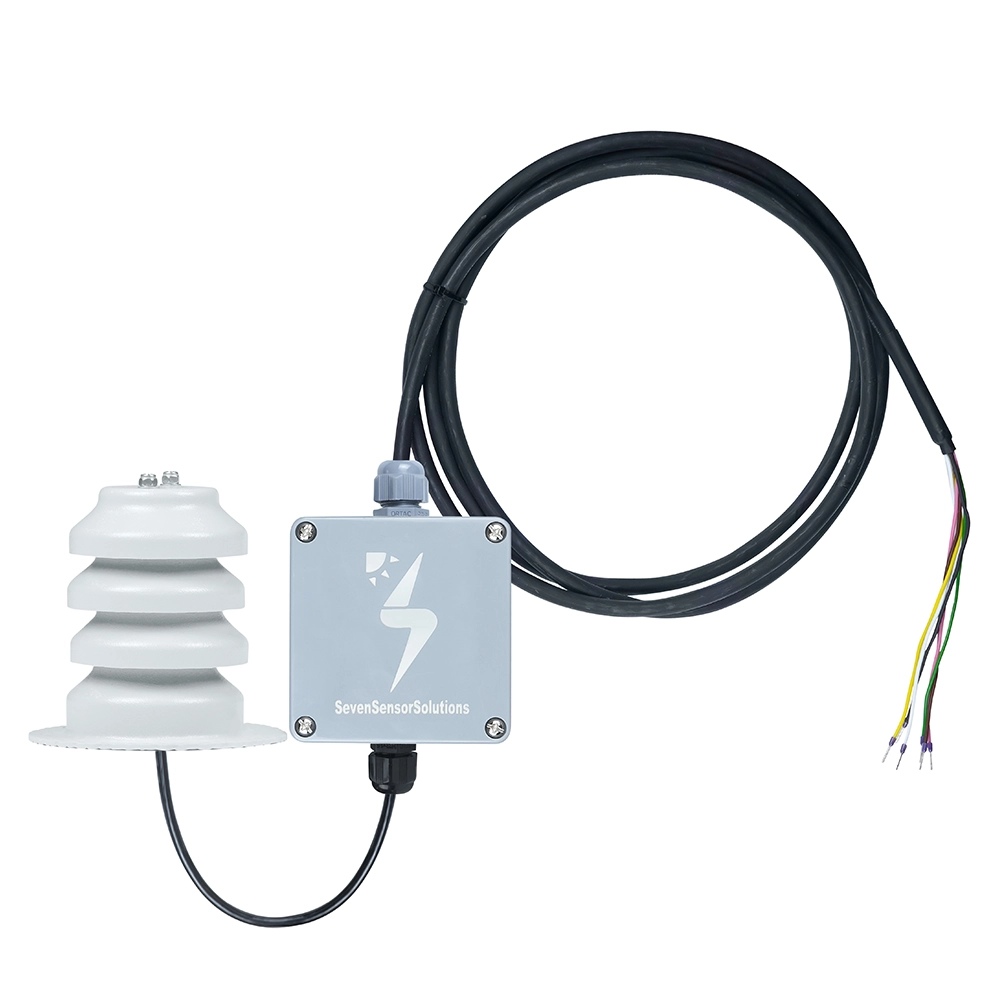

Ambient Temperature Sensor-PT1000 with Modbus Output – 3S-AT-PT1000-MB
Ambient Temperature Sensor measures the air temperature in the environment where the PVs are placed in degrees Celsius (°C) by using by using a PT1000 probe. This Ambient Temperature Sensor Model is compatible with all Dataloggers and PLCs with RS485 input port. It is supplied with mounting facility, and protected from direct sunlight & radiations by a plastic radiation shield with four aspirated plates that allow the air to pass freely.
The ambient temperature sensor is a device used for measuring the ambient temperature. Using a PT1000 probe, it measures the air temperature in the environment where PV systems are installed, in degrees Celsius (°C). The product is protected by a UV-resistant radiation shield, preventing it from being affected by direct sunlight. It is specifically designed for PV plant monitoring systems in compliance with IEC 60751:2022 and IEC 61724-1:2021 standards.
3S-AT-PT1000-MB sensors are professional, intelligent measuring devices with a digital interface, designed for environmental and industrial applications such as PV plants. The measured values are transmitted to monitoring devices, data loggers, and other receiving units via the RS485 serial interface using the Modbus RTU protocol.
Ambient temperature is one of the main factors that directly affect the performance of solar panels. For example, as the ambient temperature increases, the cell temperature also rises, leading to a reduction in the generated energy. In addition, variables such as air density and wind speed influence heat transfer, making ambient temperature measurement a critical parameter in PV system efficiency analysis.
Technical Specifications of Ambient Temperature Sensor
| Item Code | 3S-AT-PT1000-MB |
| Sensor Type | PT1000 |
| Measuring Range | -40°C to +85°C |
| Accuracy | ±0.1°C |
| Resolution | 0.1°C |
| Data Output | RS485 up to 38400 Baud |
| Communication Protocol | Modbus RTU |
| Power Supply | 12 to 30 V DC |
| Power Consumption | 15 mA @ 24 V DC |
| Cable’s Length & Features | 1m 2x2x0,22 mm² 24 AWG L12YC11Y-TP PUR Cable and 2m 3x2x0,22 mm² L12YC11Y-TP PUR Cable Weather Resistant |
| Operating Temperature Range | -40°C to +85°C |
| Box Dimensions | 80 mm x 82 mm x 55 mm (W x L x H) |
| Shield Dimensions | Ø 105 mm x 100 mm |
| Weight | 500 gr |
| IP Rating | IP 67 |
| Box Material | ABS |
| Sensor Housing Material | Stainless Steel Tube |
| Shield Material | UV-Stabilized ABS |
| Mounting Method | Ground Mounting |
| Standard | Class A according to IEC 60751:2022 |
How to install the ambient temperature sensor?
The sensor comes with a pre-assembled radiation shield that includes mounting holes.
It can be easily fixed on a flat surface using screws through the mounting holes, ensuring a quick and secure installation.
Why choose the SEVEN Ambient Temperature Sensor?
- Supplied with a radiation shield.
- Quick and easy installation with pre-drilled mounting holes.
- Designed according to IEC 60751:2022 and IEC 61724-1:2021 Annex B, ensuring high measurement accuracy.
Frequently Asked Questions (FAQ)
1- What is its class?
All 3S-AT-PT1000-MB sensors are Class A according to IEC 60751:2022.
2- What is the warranty period?
All 3S-AT-PT1000-MB sensors come with a 2-year warranty.
3- What is the price of the ambient temperature sensor?
The price ranges between 200 EUR and 250 EUR.
4- What is the delivery time?
Small orders (up to 5 units): approximately 1–2 weeks
Bulk orders (up to 100 units): approximately 5–7 weeks
5- How can I install the sensor?
Follow our user manual which include step-by-step instructions. The user manual link is
https://www.sevensensor.com/files/d/en/Ambient_Temperature_Sensor_User_Manual.pdf
6- Does the sensor include cables?
Each unit comes with a 1m 2x2x0.22 mm² and a 2m 3x2x0.22 mm² PUR cable (UV and weather-resistant). Other cable lengths are available upon request.
