Ambient Temperature Sensor-PT1000 with 0-10V Output – 3S-AT-PT1000-U
Ambient Temperature Sensor measures the air temperature in the environment where the PVs are placed in degrees Celsius (°C) by using a PT1000 probe. In order to communicate via 0-10V, a transducer is used to convert PT000 to the required Output signal. This Ambient Temperature Sensor Model is compatible with all Dataloggers, Gateways, and PLCs with 0-10V input port. It is supplied with mounting facility, and protected from direct sunlight & radiations by a plastic radiation shield with four aspirated plates that allow the air to pass freely.
One of the primary elements that directly impacts solar panel performance is ambient temperature. For instance, the generated energy decreases when the cell temperature rises in parallel with the ambient temperature. Furthermore, factors like wind speed and air density affect heat transmission, so measuring the ambient temperature is a crucial component of any analysis of the efficiency of PV systems.
One tool to calculate the ambient temperature is the ambient temperature sensor. The air temperature in the area where PV systems are installed is measured in degrees Celsius (°C) using a PT1000 probe. A UV-resistant radiation shield shields the product from the damaging effects of direct sunlight. It is made especially for PV plant monitoring systems that adhere to IEC 61724-1:2021 and IEC 60751:2022.
Analog 0–10 V ambient temperature sensors are specifically made for high-end environmental settings. A high-precision PT1000 sensor measures the ambient air temperature, and an electronic card housed in a UV-resistant, highly protective enclosure converts the data to an analog 0–10 V output. This model of ambient temperature sensor works with any Dataloggers, Gateway, or PLCs that has an input port that is between 0 and 10 volts.
Technical Specifications of Ambient Temperature Sensor
| Item Code | 3S-AT-PT1000-U |
| Sensor Type | PT1000 |
| Measuring Range | -40°C to +85°C |
| Accuracy | ±0.1°C |
| Resolution | 0.1°C |
| Data Output | Analog 0-10 V |
| Power Supply | 12 to 30 V DC |
| Power Consumption | 15 mA @ 24 V DC |
| Cable’s Length & Features | 1 m 2x2x0,22 mm² 24 AWG LI2YC11Y-TP PUR Cable and 2 m 2x2x0,22 mm² LI2YC11Y-TP PUR Cable Weather Resistant |
| Operating Temperature Range | -40°C to +85°C |
| Box Dimensions | 65 mm x 115 mm x 55 mm (W x L x H) |
| Shield Dimensions | Ø 105 mm x 100 mm |
| Weight | 521 gr |
| IP Rating | IP 67 |
| Box Material | ABS |
| Sensor Housing Material | Stainless Steel Tube |
| Shield Material | UV-Stabilized ABS |
| Mounting Method | Ground Mounting |
| Standard | Class A according to IEC 60751:2022 |
How to install the ambient temperature sensor?

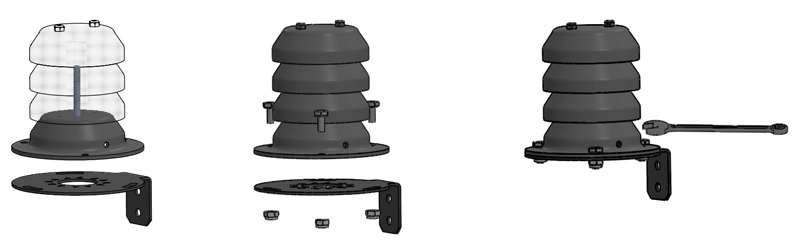

A pre-assembled radiation shield with mounting holes is included with the sensor.
Through the mounting holes, it is simple to fasten with screws on a level surface, guaranteeing a speedy and safe installation.
Why choose the SEVEN Ambient Temperature Sensor?
- Supplied with a radiation shield.
- Quick and easy installation with pre-drilled mounting holes.
- Designed according to IEC 60751:2022 and IEC 61724-1:2021 Annex B, ensuring high measurement accuracy.
Frequently Asked Questions (FAQ)
1- What is its class?
All 3S-AT-PT1000-U sensors are Class A according to IEC 60751:2022.
2- What is the warranty period?
All 3S-AT-PT1000-U sensors come with a 2-year warranty.
3- What is the price of the ambient temperature sensor?
The price ranges between 200 EUR and 250 EUR.
4- What is the delivery time?
Small orders (up to 5 units): approximately 2-3 weeks
Bulk orders (up to 100 units): approximately 7-8 weeks
5- How can I install the sensor?
Follow our user manual which include step-by-step instructions. The user manual link is
https://www.sevensensor.com/files/d/en/Ambient_Temperature_Sensor_User_Manual.pdf
6- Does the sensor include cables?
Each unit comes with a 1 m 2x2x0,22 mm² 24 AWG LI2YC11Y-TP PUR Cable and 2 m 2x2x0,22 mm² LI2YC11Y-TP PUR Cable (UV and weather-resistant). Other cable lengths are available upon request.
