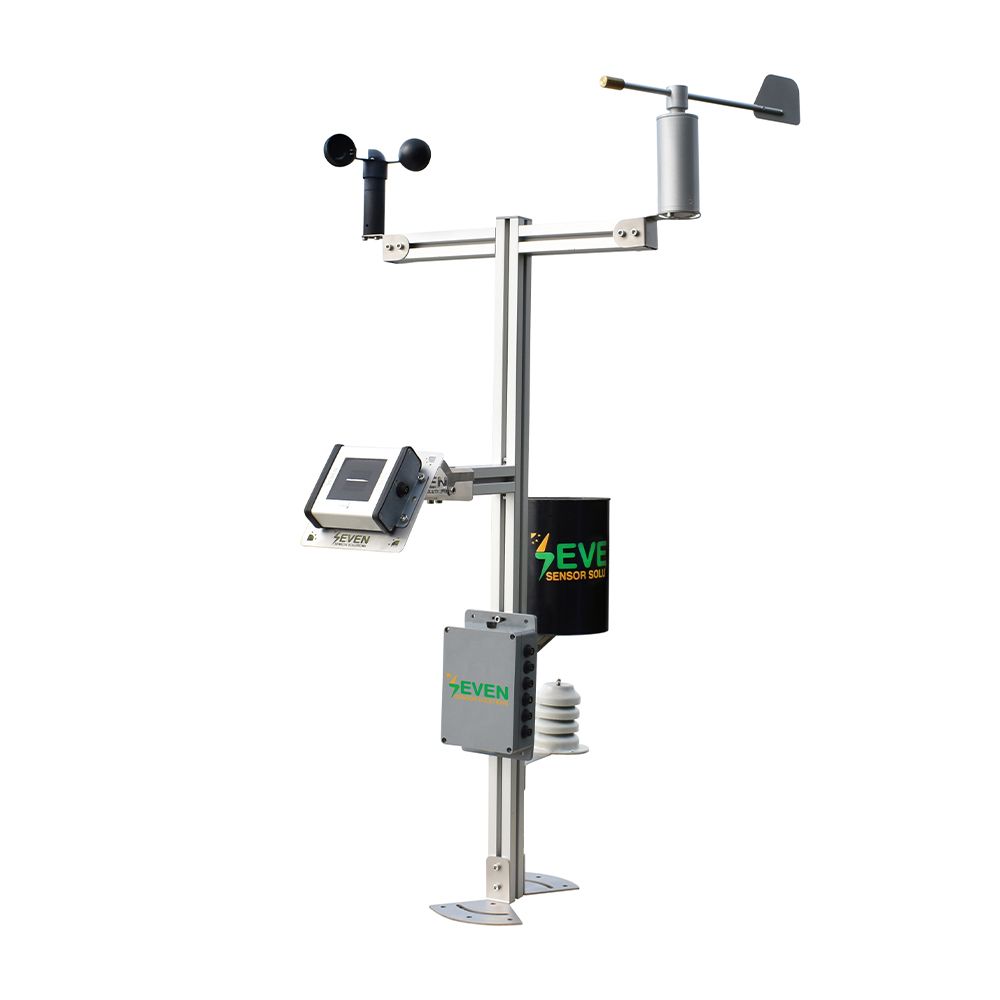

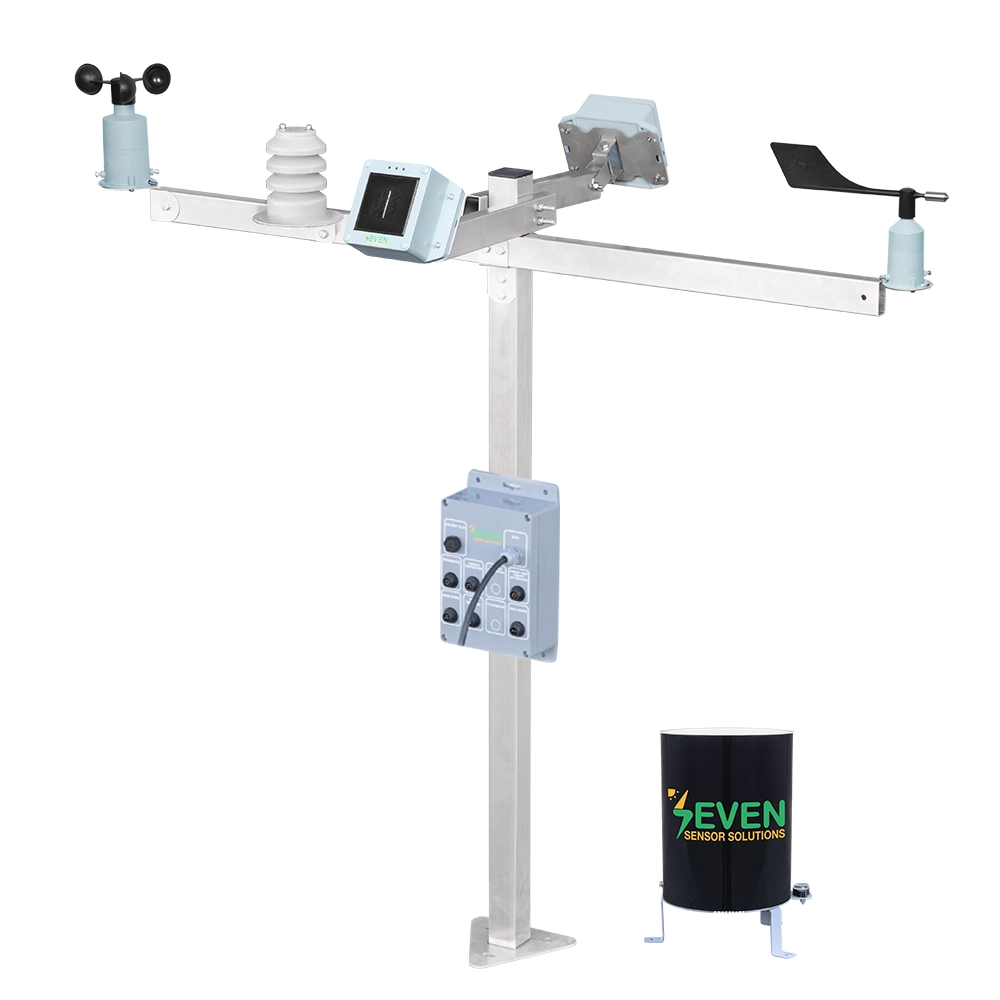

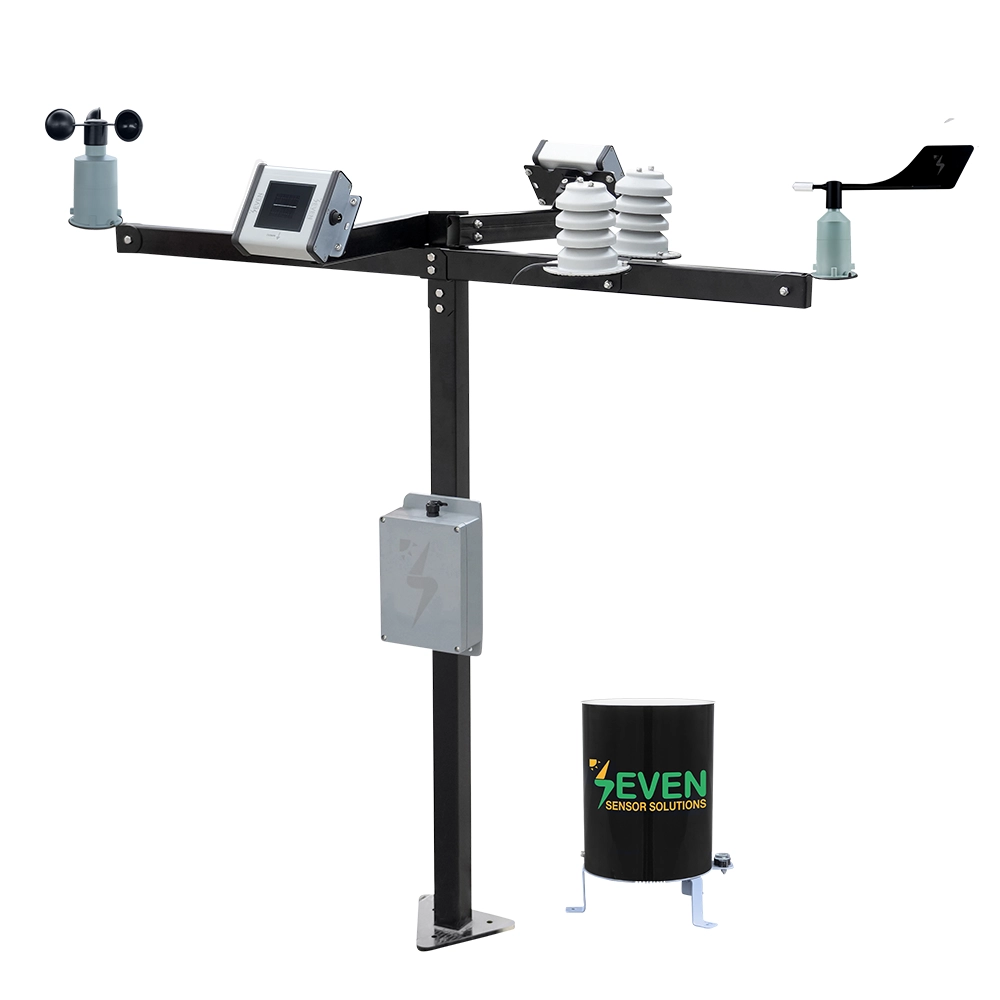

Compact Weather Station – 3S-CWS
The Compact Weather Station is an all-in-one, professional-grade sensor unit that combines multiple environmental measurements into one compact housing. Instead of installing separate sensors for wind, temperature, humidity, and pressure, this integrated device delivers a complete dataset through a single Modbus RTU output over RS485.
It is designed for solar PV monitoring, agricultural applications, smart cities, and environmental studies, where reliable weather data is critical for decision-making.
The flexible design of the Compact Weather Station makes it possible to select the connected sensors according to the required parameters in meteorological applications.
TECHNICAL SPECIFICATIONS OF COMPACT WEATHER STATION
| Item Code | 3S-CWS |
| Measured Data | Global & Plane of Array Irradiance |
| Module Temperature | |
| Ambient Temperature | |
| Wind Speed | |
| Wind Direction | |
| Relative Humidity | |
| Air Pressure | |
| Precipitation | |
| Standards | Compliant to IEC 61724-1:2021 |
| Digital Outputs | RS485 up to 38400 Baud |
| Communication Protocol | Modbus RTU (Optional Modbus TCP/IP) |
| Output Rate | 1/s |
| Operating Temperature Range | -40°C to +85°C |
| Operating Humidity Range | 0 to 100 %RH |
| Mounting Structure Material | Coated Steel |
| Dimensions | 635 x 1123 x 1048 mm (W x L x H); Height can be changed as per request |
| Weight | 5,8 kg |
| IP Rating | IP 54 (Optional IP 67) |
| Power Supply | 12 to 30 V DC |
| Power Consumption | 25 mA @ 24 V DC |
| Electrical Connection | 3 m LIYYC11Y PUR Cable, UV and weather resistant |
| Connection Box Material | ABS |
| Galvanic Isolation | 1000 V between power supply and RS485 Bus |
How Does the Compact Weather Station Work?
The 3S-Compact Weather Station integrates multiple sensors into a single weatherproof housing, designed for quick and error-free installation.
External sensors follow a Plug & Play principle:
- The connection box is equipped with waterproof, UV-resistant connectors.
- Each sensor uses a unique pin configuration, making incorrect connections impossible.
Once installed, the weather station automatically begins collecting measurements. All incoming signals from the connected sensors are processed by the electronic control board inside the connection box. The processed data is then transmitted via RS485 using Modbus RTU, ensuring reliable, long-distance communication with SCADA systems, PLCs, or dataloggers.
Why Choose the SEVEN Compact Weather Station?
- All-in-One Design – multiple weather parameters in one device
- High Accuracy –compliant with IEC standards
- Rugged Housing – UV-protected, IP-rated enclosure built for harsh outdoor conditions
- Plug-and-Run – supplied with mounting system, brackets, and cable for fast installation
- Easy Integration – direct compatibility with Modbus RTU-based Systems
Where Is the Compact Weather Station Used?

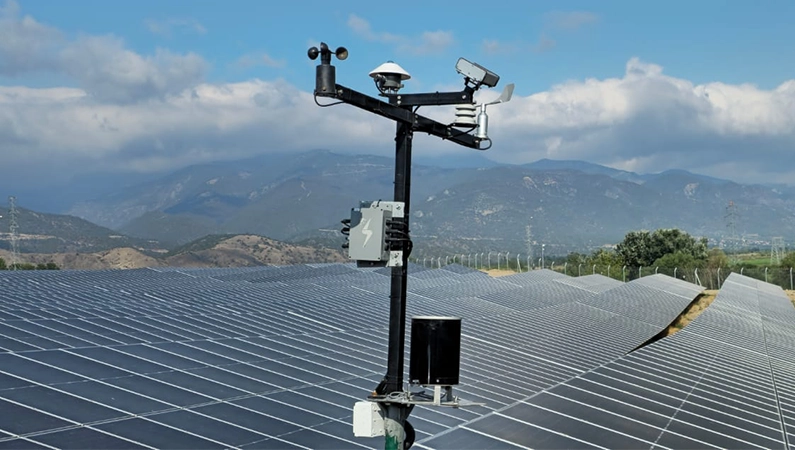

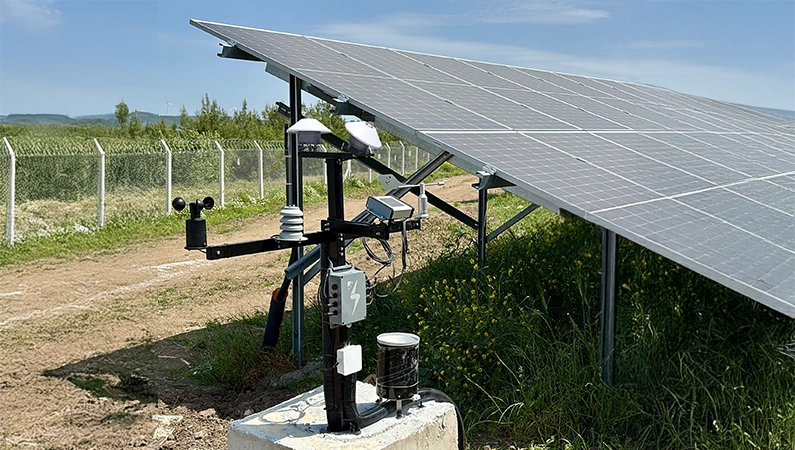

- Solar PV Plants – monitor weather conditions for performance ratio (PR) calculations and energy yield analysis.
- Agriculture – optimize irrigation, pest control, and crop management through accurate environmental data.
- Smart Cities – support environmental monitoring networks for air quality and weather conditions.
- Research & Academia – provide reliable meteorological data for climate studies and experiments.
Frequently Asked Questions (FAQ)
1- What external sensors can be connected to the Compact Weather Station?
The SEVEN Compact Wather Station supports the connection of external sensors such as:
- Thermopile Pyranometer
- Irradiance Sensor
- Module Temperature Sensor
- Ambient Temperature Sensor
- Wind Speed Sensor
- Wind Direction Sensor
- Relative Humidity Sensor
- Barometric Pressure
- Rain Gauge
You are free to add or remove external sensors depending on the needs of your specific project.
2- Is the Compact Weather Station compatible with my SCADA or datalogger?
Yes. As long as your system supports RS485/Modbus RTU, integration is seamless.
3- How do I set up the sensor?
Follow our user manual and YouTube video guides, which include step-by-step instructions for configuring the sensors.
4- Is the mounting structure included?

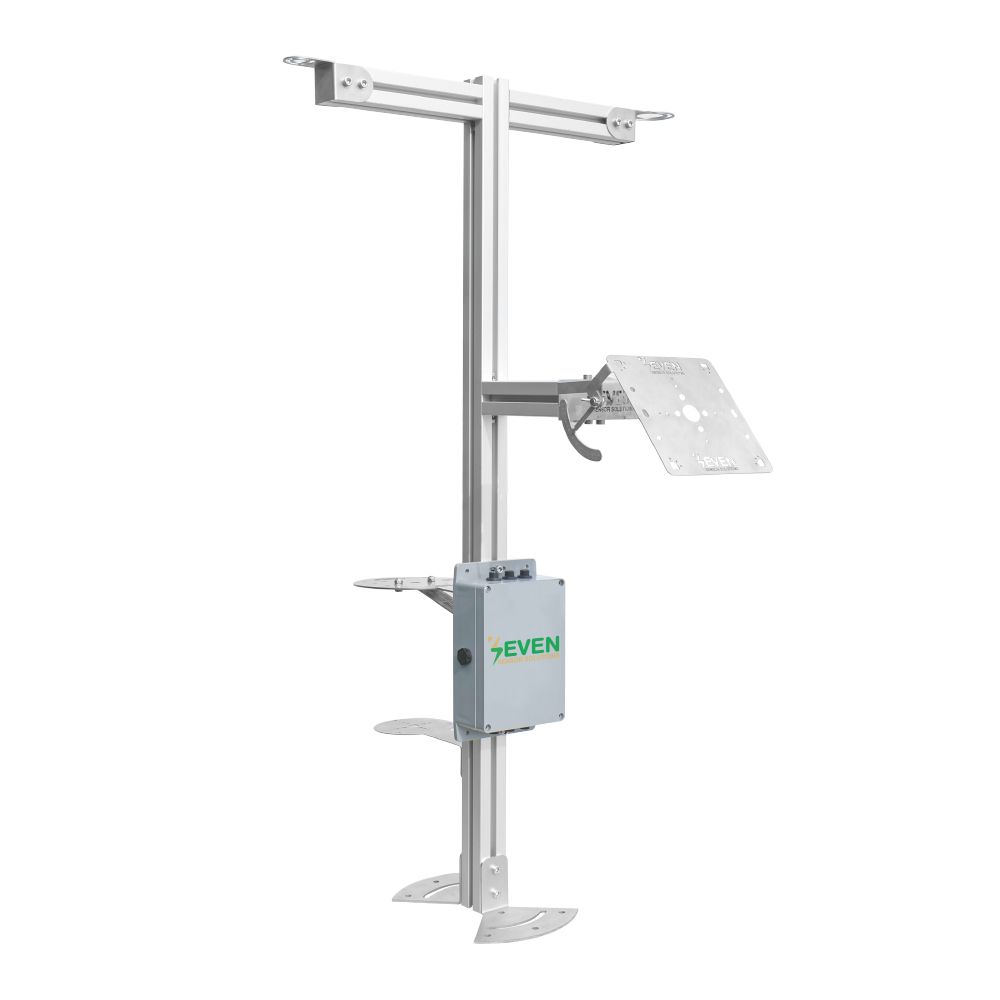

Yes. The station comes with a carbon steel mounting system along with brackets for the sensors to be connected.
5- Does the sensor include a cable?
Each unit comes with a 3 m LIYYC11Y PUR cable (UV and weather resistant) with 6 wires twisted (including ground for both Data & Power). Other lengths are available on request.
6- How is it powered?
The voltage supply for the Compact Weather Station is 12 – 30 V DC. Operation with a voltage supply of 24 V is recommended.
7- What is the price of 3S-CWS?
Depending on the included sensors, the compact weather station is available for around 1800 EUR.
8- What is the warranty?
The 3S-Compact Weather Station is covered by a 2-year manufacturer’s warranty.
9- What are the delivery times?
- Small orders: approx. 1-2 weeks
- Bulk orders (100+ units): approx. 6-8 weeks
