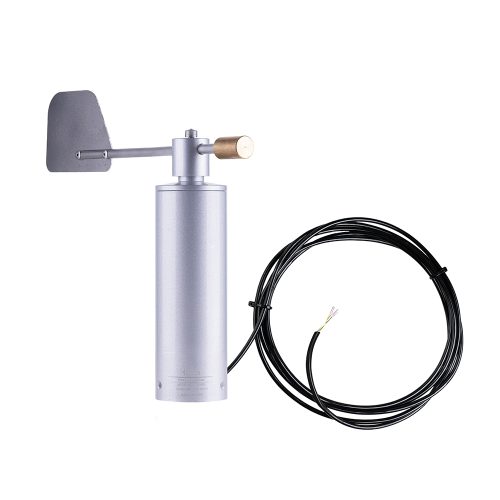

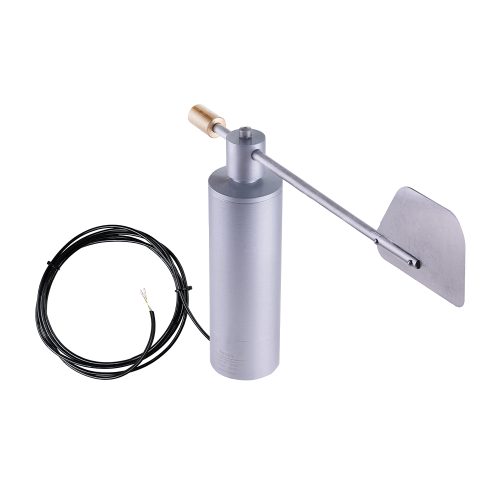

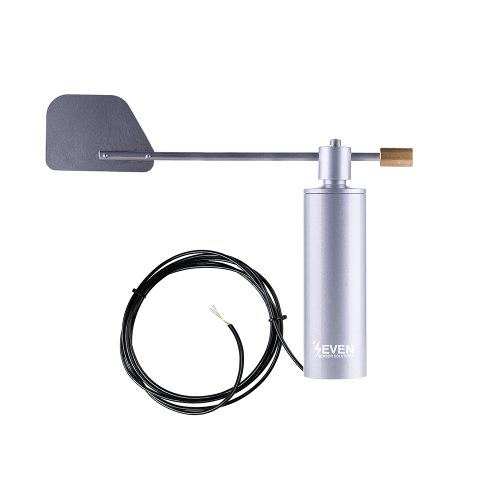

Wind Direction Sensor With Analog Output

3s-wd-i-u

APPLICATION

Small and economical wind direction sensor with analog output signal. Used for measuring wind direction in universal applications and GES projects. It is made of a UV resistant plastic material. Supplied with cable.

TECHNICAL DATA

General Information
Power Supply 24 V AC/DC
Connection 4 Wired Connection
Power Consumption 60 mA +/- 10%
Start Speed 1 m/s
Measuring Range 0…360 °C
Cable 5m – 4×0,5 mm²
Max. Wind Load 50 m/s
Height 220 mm
Mast Holder Diameter: max. 50 mm
Weather Vane 350 mm
Protection IP65
Signal Output
Type I 4…20 mA
Measuring Range 0…360 °C
Type U 0…10 V
Measuring Range 0…360 °C
Electrical Connection
Black-1 Output (-) 0…10 V / 4…20 mA
Black-2 Output (+) 0…10 V / 4…20 mA
Black-3 Power (-)
Black-4 Power (+)
×
