SolaX Power Weather Station
SEVEN provides a full set of Weather Station for Solar PV Plants, compatible with SolaX DataHub 1000. The DataHub1000 is a professional device that helps monitor and manage your site with multi SolaX inverters and the different sensors of such as Irradiance Sensor, Module & Ambient Temperature Sensors, Wind Speed & Direction Sensors, and Relative Humidity Sensor.
SolaX offers smart solar and energy storage solutions designed to adapt to different energy needs. Also, SolaX offers advanced solar PV and energy storage solutions to help businesses optimize energy use and reduce costs. IT is ideal for industries, businesses, remote areas, and critical infrastructure.
What is the working principle of Solax Weather Station?
The sensor box collects environmnet data from the sensors connected to it. The detected data includes ambient temperature, humidity, module temperature, wind speed and wind direction etc.

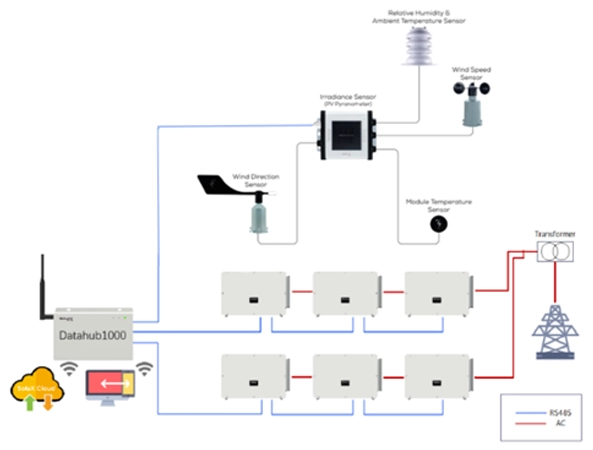

The sensor box is connected to one port of datahub by RS485, and datahub can then display the weather data in a dashboard, furthermore to use the data to do smart trigger. The current system datahub model is Datahub 1000, and the firmware version must be V011.00 or any newer version.
What are the components of Solax Power Weather Station?
The standard components of Solax Power weather station include irradiance, module temperature, wind speed, wind direction, relative humidity and ambient temperature sensors.
- Irradiance Sensor or PV Pyranometer, with Modbus RTU output, that measures radiation, is also used as a Reference Cell due to its high measuring accuracy. Taking into consideration that the use of this PV Pyranometer is crucial for measurement in solar applications. It has also up to five input ports for additional sensors, and an output port connected to the Datalogger via a RS485 cable.
- Module Temperature Sensor measures the back of module temperature, used in the calculation of the Performance Ratio of the PV Plant.
- Wind Speed Sensor, also known as Anemometer, is used to measure wind speed in solar power plants, and to provide the data to the Datalogger.
- Wind Direction Sensor is used for monitoring the direction of the wind and providing the data obtained to the Datalogger.
- Relative Humidity & Ambient Temperature Sensor is a transmitter used to measure the relative humidity and ambient temperature.

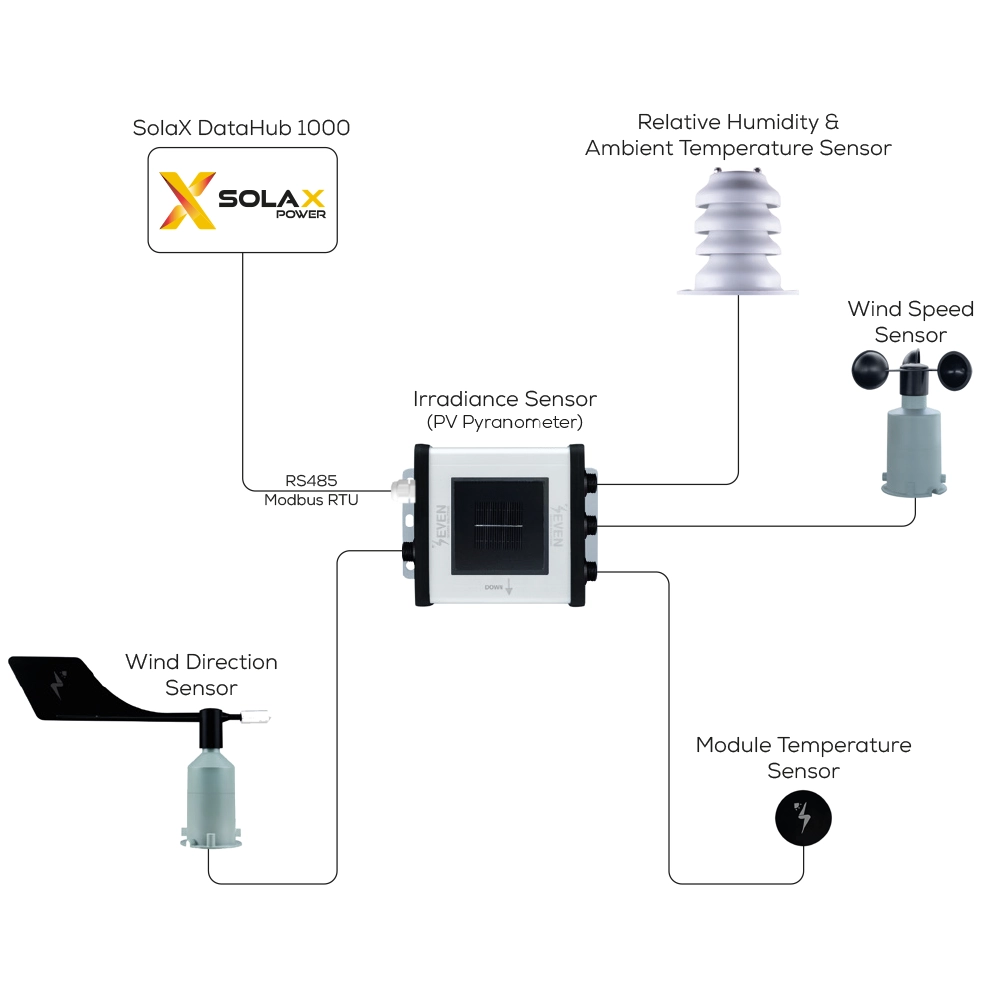

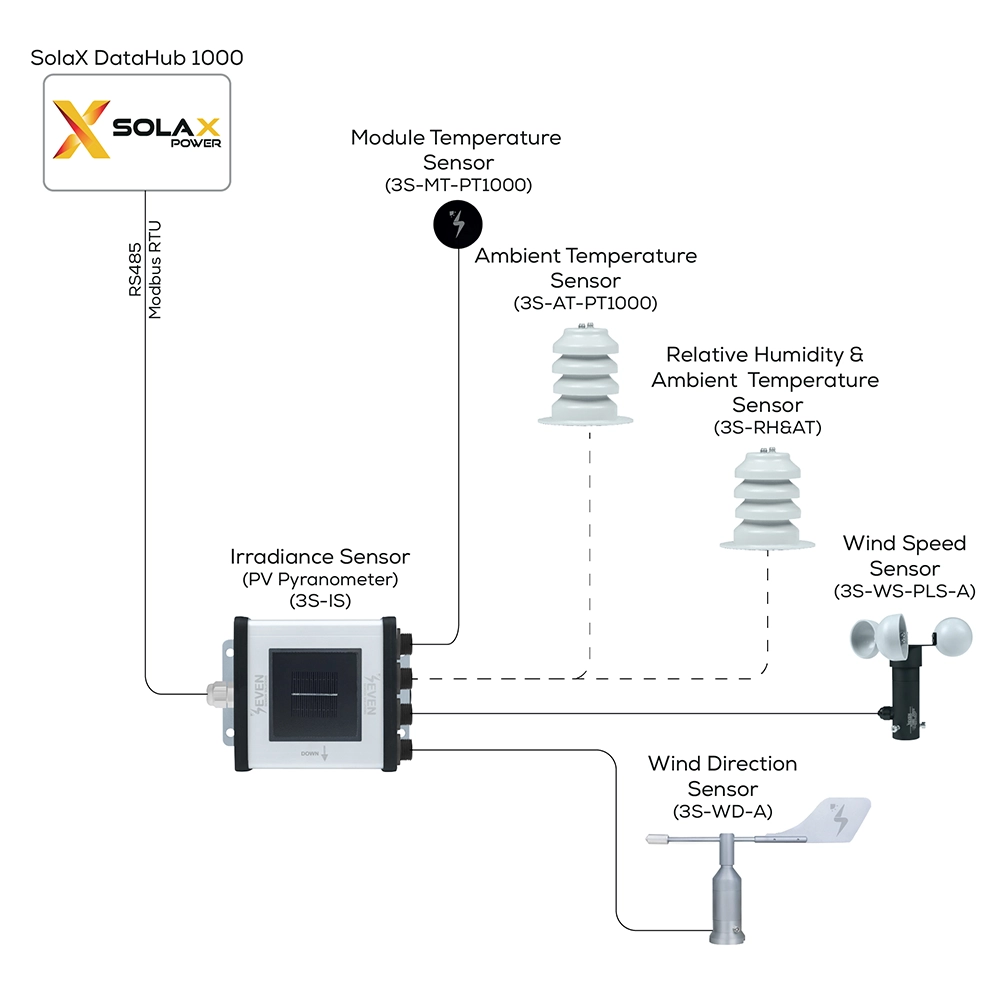

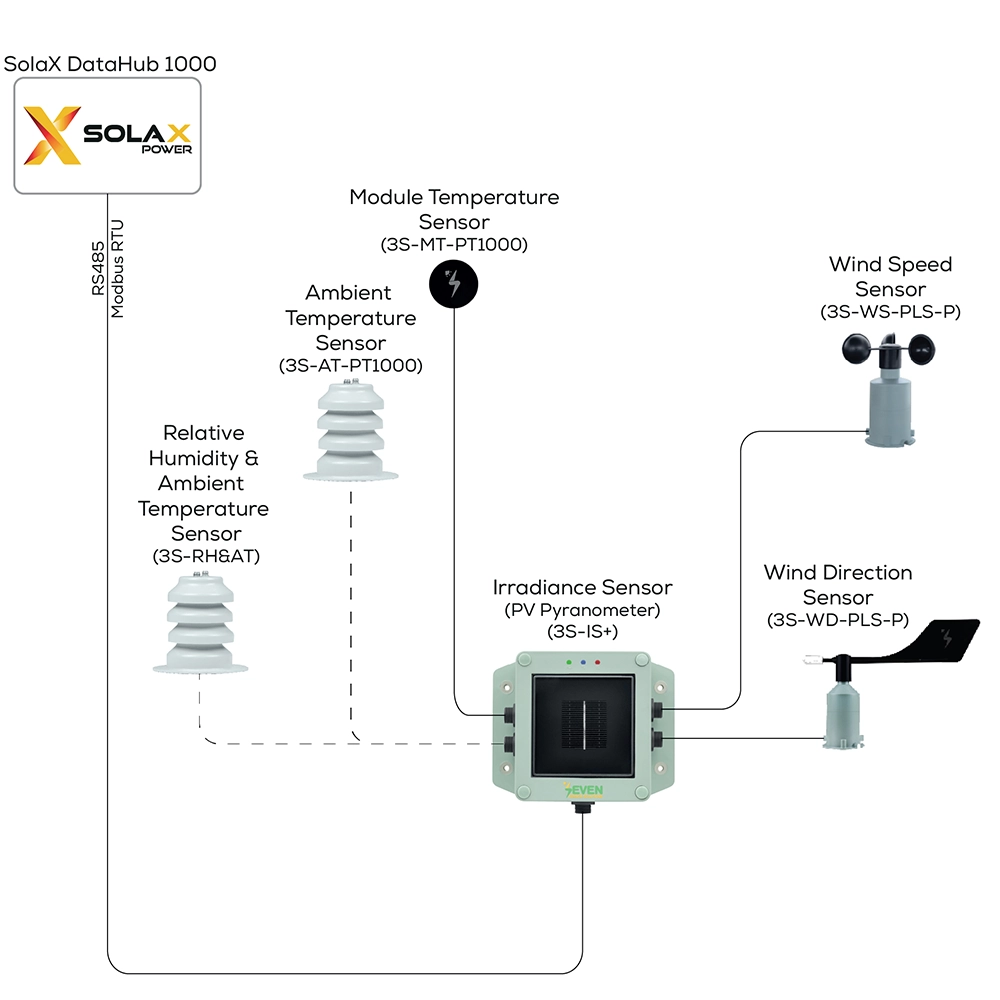

The Irradiance Sensor is the main sensor and all other sensors are externally connected to the Irradiance Sensor Box. The data collected by the Irradiance Sensor is communicated with the datalogger with a single cable and Modbus RTU communication protocol.
| Product Photo | Sensor |
|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
What is the Solar Power’s Monitoring Platform?
Solar Power’s monitoring platform is called SolaxCloud, which is the cloud-platform for monitoring and control. The key features are following:
- Provides real-time monitoring of energy usage/generation.
- Enables intelligent load & tariff optimisation (“Smart Scene”, etc).
- Offers multi-platform usability, remote access, scalable for home, C&I, utility.
- Data security & compliance emphasised.
Frequently Asked Questions (FAQ)
1- Which sensors does 1 set of Solax Power weather station include?
The Solax Power weather station include the irradiance sensor, module temperature sensor, wind speed sensor, wind direction sensor, relative humidity and ambient temperature sensor.
2- Which Solax Power datalogger is SEVEN Sensor Solutions compatible with?
SEVEN Sensor Solutions is compatible with Solax Power datalogger called DataHub 1000.
3- What is the name of Solax Power monitoring system?
The name of Solax Power monitoring system is SolaxCloud.
4- Who do we contact if we have any problems?
You can contact with our Technical Support Team. Their phone numbers are +90 553 892 26 70 / +90 501 102 88 70, and their email is teknik@sevensensor.com.
5- What are the delivery times?
- Small Orders: approx. 2-3 weeks
- Bulk orders (100 pcs): approx. 7-9 weeks
6- Can the Solax Power datalogger read relative humidity data?
Yes, it can. It can also read irradiance, module temperature, wind speed, wind direction and ambient temperature.
