Aluminium Wind Direction Sensor – 3S-WD-A

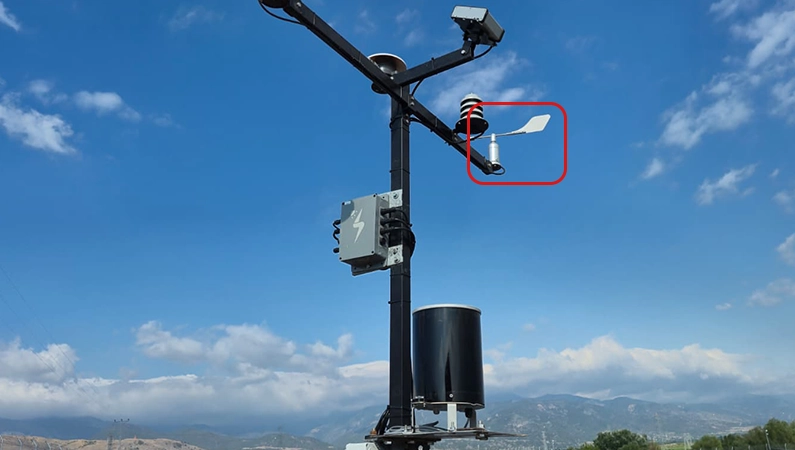

The Wind Direction Sensor is a professional meteorological device designed to measure horizontal wind direction. It uses a Hall Effect Position Sensor to detect changes in wind direction and converts them into a signal. The measured data is transmitted as an analog output signal (0-3.3V). This model can connect to SEVEN’s Irradiance Sensor, Sensor Box, and Compact Weather Station models via a pin connector.
It should be remembered that, depending on the location and circumstances, solar cells should be set at specific tilt angles (angles to the earth) in order to maximize their effectiveness. Consequently, variations in the convection coefficient are also caused by the wind acting on the array’s plane at various angles and orientations. This is because winds from different directions have distinct characteristics at different sites, therefore the effective area varies depending on the wind direction. Because of this, SEVEN wind direction sensors are crucial for assessing power plant performance where different wind directions are significant.
A professional meteorological tool for determining the horizontal wind direction is the Aluminium Wind Direction Sensor. It detects and transforms changes in wind direction into a signal using a Hall Effect Position Sensor. The analog output signal (0-3.3V) is used to convey the measured data. A pin connector allows this model to be connected to SEVEN’s Irradiance Sensor, Sensor Box, and Compact Weather Station products.
Technical Specifications of Aluminium Wind Direction Sensor
| Item Code | 3S-WD-A |
| Sensor Type | Vane-Driven Hall Effect Position Sensor |
| Measuring Range | 0-359° |
| Accuracy | ±1% of Measuring Value |
| Resolution | 0,1° |
| Start Speed | 1 m/s |
| Data Output | Analog (0 V – 3.3 V) |
| Cable Length & Features | 3m 2x2x0,22 mm² – LI2YC11Y-TP Cable, UV and Weather Resistant |
| Operating Temperature Range | -40°C … +85°C (Ice free) |
| Dimensions | Ø: 305 mm x185 mm |
| Weight | 0.34 kg |
| IP Rating | IP 54 (IP65 Optional) |
| Housing Material | Aluminium |
| Vane Material | Aluminium |
| Mounting Method | Pipe or Ground Mounting |
| Standard | Compliant to IEC 61724-1:2021 |
How to install Aluminium Wind Direction Sensor?
Before installation, it is advised that the system be run at ground level to ensure that every part is functioning as it should. The Plug & Run concept was used in the design of the 3S-WD Wind Direction Sensor. This design lowers the possibility of errors and simplifies setup. The processes for installation are described in detail below. Two different mounting options are available.

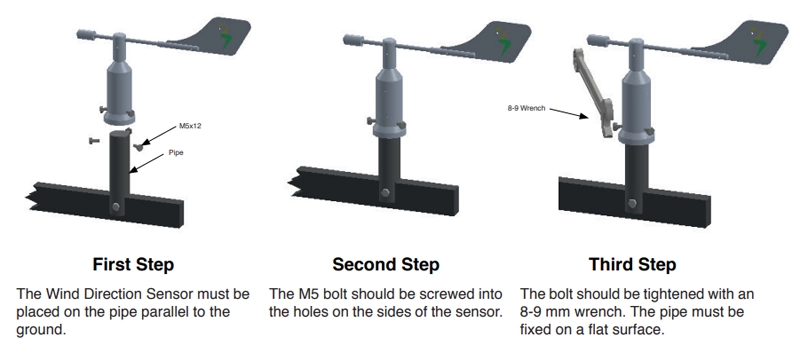

Pipe Mounting:

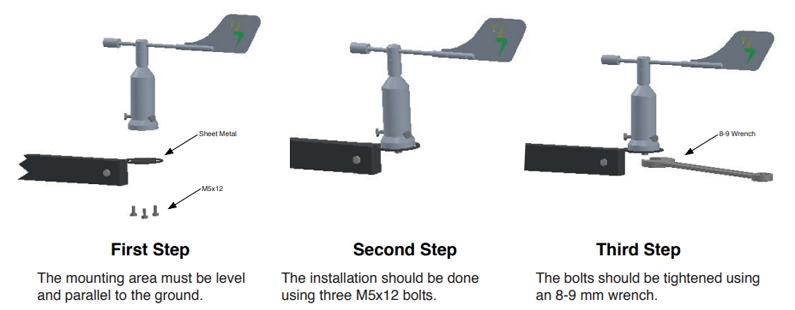

Ground Mounting:
Why SEVEN Aluminium Wind Direction Sensor?
High Accuracy: Provides accurate wind direction data with little variation, guaranteeing the data’s dependability.
High Durability: The device offers exceptional endurance against outside circumstances thanks to its anodized aluminum body, which is resistant to seawater.
Long Lifespan: Made to resist dust, strong winds, and other outside conditions, this device has a long working life and requires little maintenance.
Best price/performance ratio: For the typical needs of industrial and environmental applications, like photovoltaic plants, the product provides the best price/performance ratio.
Easy Connection: It integrates easily with SCADA systems, dataloggers, inverters, and the majority of industrial configurations.
Frequently Asked Questions (FAQ)
1- What standards does the sensor comply with?
The 3S-WD-A is compliant with IEC 61724-1:2021, ensuring reliable performance for PV monitoring applications.
2- How do I set up the sensor?
Follow our user manual which include step-by-step instructions. The user manual link is https://www.sevensensor.com/files/d/en/3S-WD_User_Manual.pdf
3- Does the sensor include a cable?
The sensor comes with a 3 m 2x2x0,22 mm² LI2YC11Y-TP cable, which is UV and weather resistant. Custom lengths are available on request.
4- How to mount of 3S-WD-A?
There are two different mounting options; namely, pipe and ground mounting.
5- What is the warranty period of 3S-WD-A?
All 3S-WD-A sensors come with a 2-year warranty covering defects in materials or workmanship.
6- What are the delivery times?
- Small Orders: approx. 1-2 weeks
- Bulk orders (100 pcs): approx. 4-5 weeks
7- What is the price of aluminium wind direction sensor?
Aluminium wind direction sensor price is between 300 and 350 EUR.
