WebdynSun – FTP Application with Analogue and Modbus Weather Sensors

PROJECT DETAILS

Project : Karahamzali–Kirlangic-Cag Yıldızlı- Pasifik-Gunesyuzu Location : Ankara / Turkey
Client : Aktif Bank / Fraunhofer Installation Date : 30-31.10.2019

COMPONENT LIST

No Description Birim Miktar
1. Bala-Karahamzalı-WebdynSun Datalogger

– Serial interfaces : 1 RS485 port – 1 RS485/RS232 port
– Meter interfaces : 3 TIC meter (Télé Info Client)
– 2 impulse inputs
– I/O GPIO interfaces : 4 0/10V-4/20mA analog inputs
– 4 dry contact inputs
– 2 dry contact outputs
– IP network interfaces : Ethernet : 10/100Mbits/s – GSM/GPRS/3G

1 adet
2. Bala-Karahamzalı-Power Supply

Lipman Power Supply, 100-250VAC, 24VDC-2A, 50-60Hz. CE, TUV, UL listed.

1 adet
3. Polatlı-Yıldızlı-WebdynSun Datalogger

– Serial interfaces : 1 RS485 port – 1 RS485/RS232 port
– Meter interfaces : 3 TIC meter (Télé Info Client)
– 2 impulse inputs
– I/O GPIO interfaces : 4 0/10V-4/20mA analog inputs
– 4 dry contact inputs
– 2 dry contact outputs
– IP network interfaces : Ethernet : 10/100Mbits/s – GSM/GPRS/3G

1 adet
4. Polatlı-Yıldızlı-Power Supply

Lipman Power Supply, 100-250VAC, 24VDC-2A, 50-60Hz. CE, TUV, UL listed.

1 adet

Existing Monitoring System-Dataogger: Huawei Enspire, NetEco, Smartlogger 1000A and 2000
Communication: Analogue Irradiance and ambient temperature sensors, Modbus RTU pyranometers
Summary: Supply, installation and commissioning of WebdynSun datalogger to upload meteorological data to FTP.
Challenges: PLC communication loss, read more

SITE & APPLICATION DETAILS:

FTP Folder Structure

FTP Folder Structure

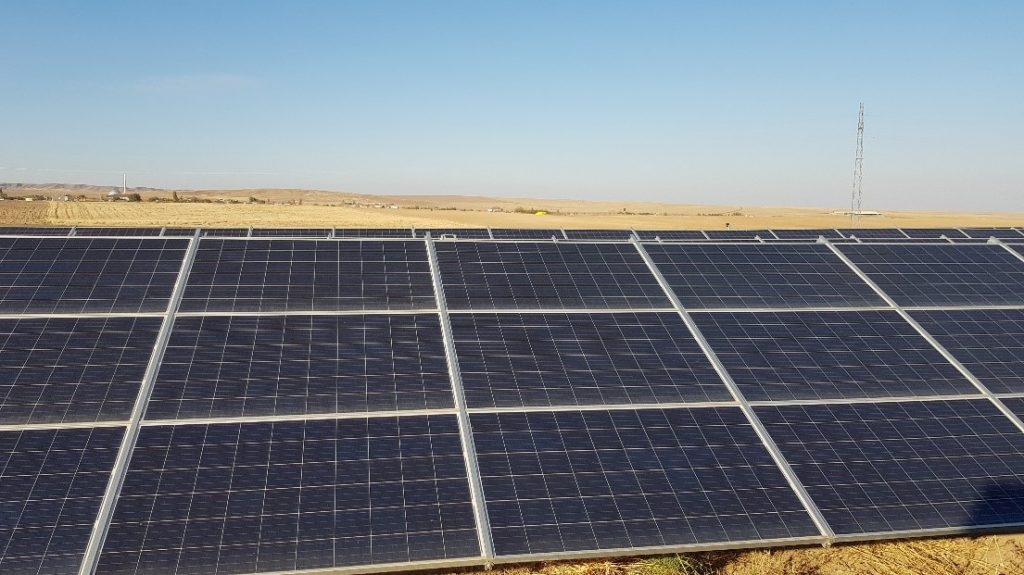

Ankara Polarli-Karahamzali, Solar PV Plant

Ankara Polarli-Karahamzali, Solar PV Plant

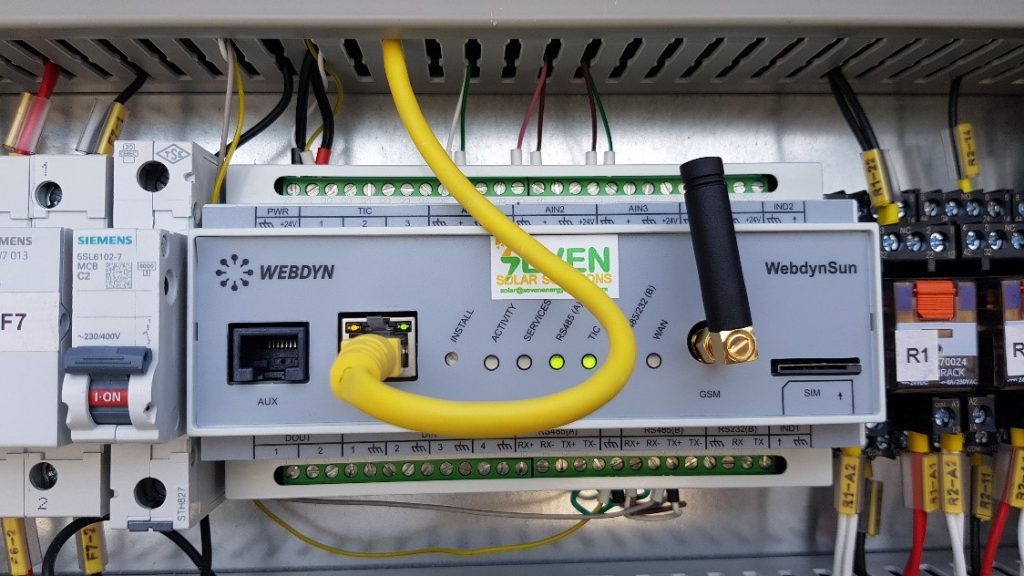

WebdynSun datalogger

WebdynSun datalogger

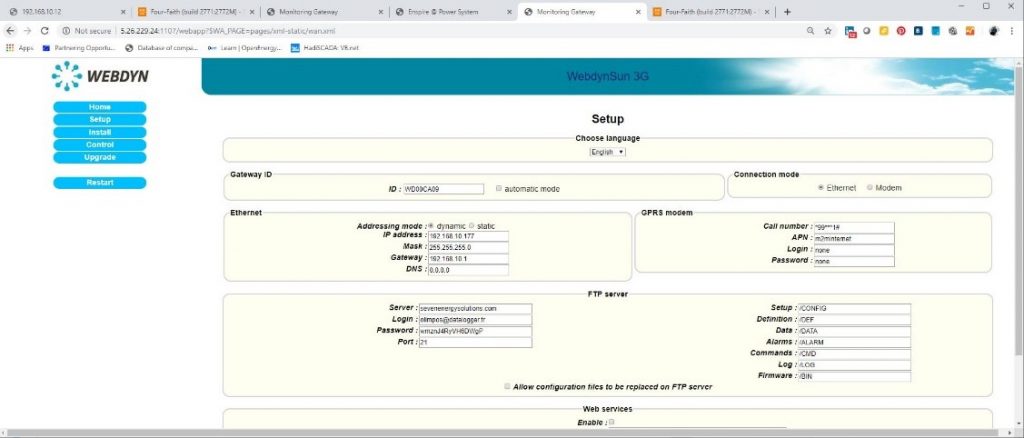

WebdynSun web interface

WebdynSun web interface
