Ambient Temperature Sensor-PT1000 with 4-20 mA Output – 3S-AT-PT1000-I

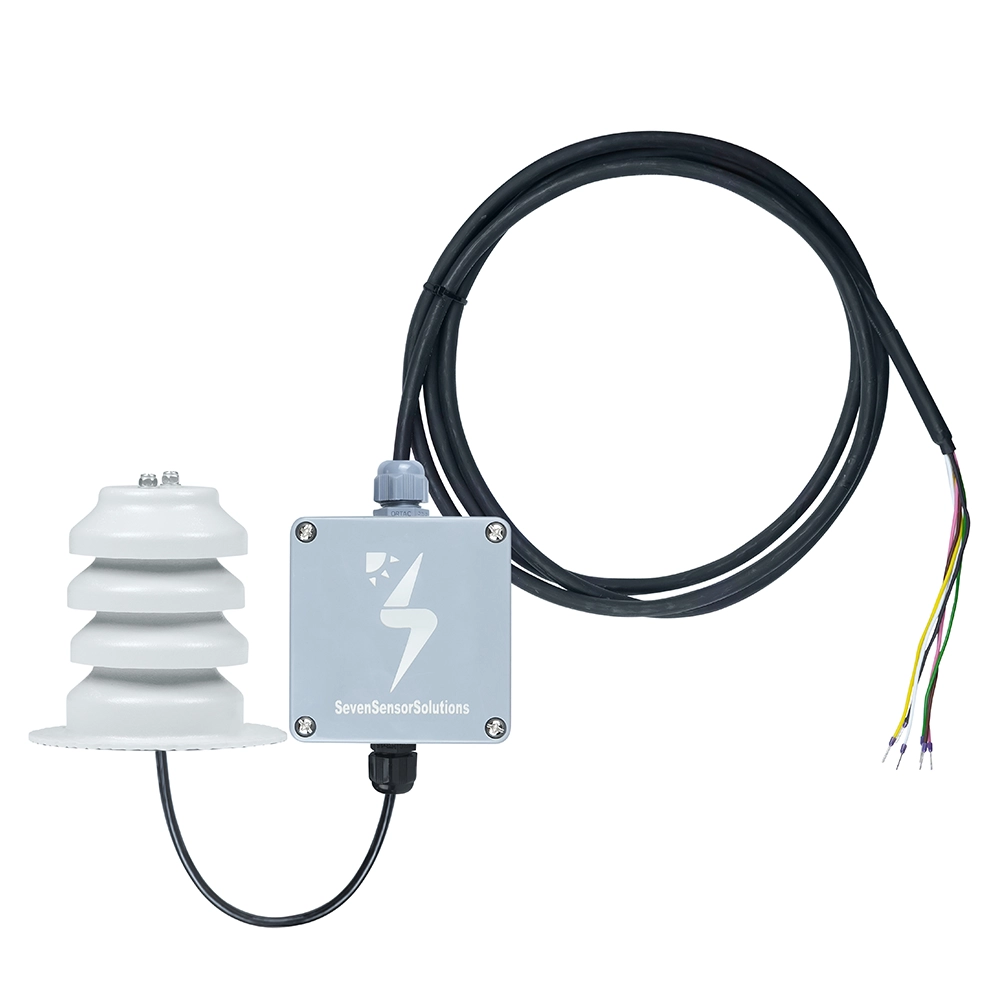

Ambient Temperature Sensor measures the air temperature in the environment where the PVs are placed in degrees Celsius (°C) by using a PT1000 probe. In order to communicate via 4-20mA, a transducer is used to convert PT000 to the required Output signal. This Ambient Temperature Sensor Model is compatible with all Dataloggers, Gateways, and PLCs with 4-20 mA input port. It is supplied with mounting facility, and protected from direct sunlight & radiations by a plastic radiation shield with four aspirated plates that allow the air to pass freely.
Ambient temperature is one of the main factors that directly affects solar panel performance. For example, as the cell temperature increases in parallel with the surrounding temperature, less energy is produced. Furthermore, any examination of the efficiency of PV systems must include a measurement of the ambient temperature because variables like wind speed and air density affect heat transport.
The ambient temperature sensor is one instrument used to determine the ambient temperature. A PT1000 probe is used to measure the air temperature in the vicinity of PV systems in degrees Celsius (°C). The product is protected from the harmful effects of direct sunlight by a UV-resistant radiation shield. It is specifically designed to work with PV plant monitoring systems that follow IEC 60751:2022 and IEC 61724-1:2021.
Analog 4–20 mA ambient temperature sensors are specifically made for premium environmental settings. A high-precision PT1000 sensor measures the ambient air temperature, and an electronic card housed in a UV-resistant, highly protective enclosure converts the data to an analog 4–20 mA output. This type of ambient temperature sensor works with any datalogger, gateway, or PLC that has an input port that supports 4–20 mA.
Technical Specifications of Ambient Temperature Sensor
| Item Code | 3S-AT-PT1000-I |
| Sensor Type | PT1000 |
| Measuring Range | -40°C to +85°C |
| Accuracy | ±0.1°C |
| Resolution | 0.1°C |
| Data Output | Analog 4-20 mA |
| Power Supply | 12 to 30 V DC |
| Power Consumption | 30 mA @ 24 V DC |
| Cable’s Length & Features | 1 m 2x2x0,22 mm² 24 AWG LI2YC11Y-TP PUR Cable and 2 m 2x2x0,22 mm² LI2YC11Y-TP PUR Cable Weather Resistant |
| Operating Temperature Range | -40°C to +85°C |
| Box Dimensions | 80 mm x 82 mm x 55 mm (W x L x H) |
| Shield Dimensions | Ø 105 mm x 100 mm |
| Weight | 500 gr |
| IP Rating | IP 67 |
| Box Material | ABS |
| Sensor Housing Material | Stainless Steel Tube |
| Shield Material | UV-Stabilized ABS |
| Mounting Method | Ground Mounting |
| Standard | Class A according to IEC 60751:2022 |
How to install the ambient temperature sensor?
The sensor comes with a pre-assembled radiation shield that has mounting holes.
A quick and secure installation is ensured by the mounting holes, which make it easy to secure with screws on a flat surface.
Why choose the SEVEN Ambient Temperature Sensor?
- Supplied with a radiation shield.
- Quick and easy installation with pre-drilled mounting holes.
- Designed according to IEC 60751:2022 and IEC 61724-1:2021 Annex B, ensuring high measurement accuracy.
Frequently Asked Questions (FAQ)
1- What is its class?
All 3S-AT-PT1000-I sensors are Class A according to IEC 60751:2022.
2- What is the warranty period?
All 3S-AT-PT1000-I sensors come with a 2-year warranty.
3- What is the price of the ambient temperature sensor?
The price ranges of Ambient Temperature Sensor-PT1000 with 4-20 mA Output is between 200 EUR and 250 EUR.
4- What is the delivery time?
Small orders (up to 5 units): approximately 2-3 weeks
Bulk orders (up to 100 units): approximately 7-8 weeks
5- How can I install the sensor?
Follow our user manual which include step-by-step instructions. The user manual link is
https://www.sevensensor.com/files/d/en/Ambient_Temperature_Sensor_User_Manual.pdf
6- Does the sensor include cables?
Each unit comes with a 1 m 2x2x0,22 mm² 24 AWG LI2YC11Y-TP PUR Cable and 2 m 2x2x0,22 mm² LI2YC11Y-TP PUR Cable (UV and weather-resistant). Other cable lengths are available upon request.
